Durr Suction Unit VS600 (Wet suction)

Treatment chairs: 2-3

Simultaneous operators: 2

“VS“ stands for the combination of vacuum generation and separation. VS suction units are called wet systems because the entire suction and separation function is combined centrally in a VS suction unit on one drive shaft. This allows significant savings to be made. For example, there is no need for separate separation machines on the Dental Units and some of the operating costs of traditional systems – such as water ring pumps – are no longer relevant. Dürr Dental VS Suction Systems are power packs that you can rely on. They can aspirate large quantities of liquids and serve up to four operators at the same time without interruption. Thanks to the integrated two-stage separation system, the aspiration of secretions and blood foam into the turbine space is reliably prevented. The drive of the combination suction unit runs smoothly and without vibration and is extremely reliable. All important functional elements have corrosion protection finish, which contribute to their extraordinary long service lives.

Technical data:	VS 600
Voltage (V 1~, V 3~)	230 / 400
Frequency (Hz)	50 / 50 - 60
Current consumption (A)	5.0 / 1.8 - 4.0
Power (kW)	1,10 / 1.00 - 1.42
Speed (rpm)	2,850
Cyclic duration factor (S1)	100 %
Noise level without housing dB(A)	approx. 63, / approx. 63 - 68
Noise level with housing dB(A)	approx. 55 / approx. 55 - 59
Dimensions without housing (H x W x D cm)	50 x 42 x 41
Dimensions with housing (H x W x D cm)	65 x 49 x 53
Weight without housing (kg)	25
Weight with housing (kg)	45

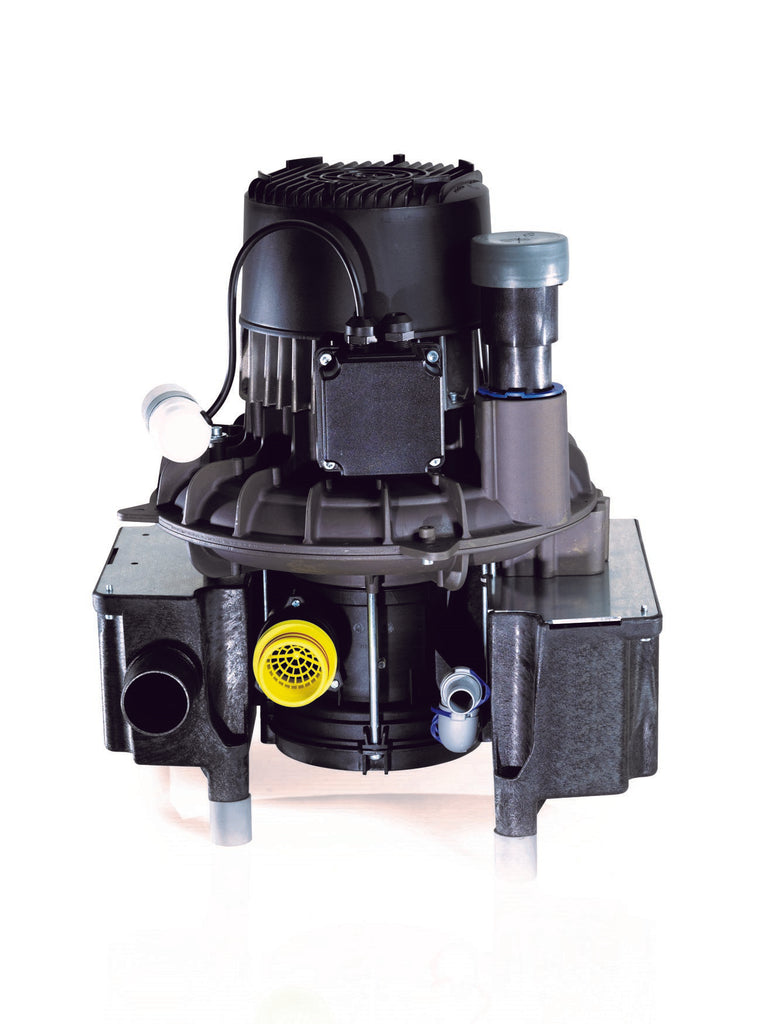

Durr Suction Unit - VS600
